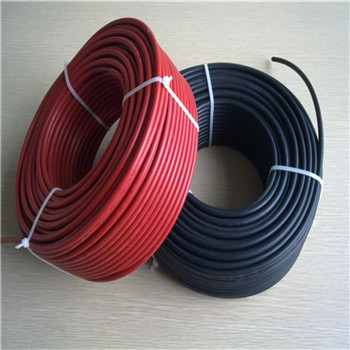

red,black 4mm2,6mm2,10mm2, 1500VDC H1Z2Z2-K Solar DC Cable EN 50618

red,black 4mm2,6mm2,10mm2, 1500VDC H1Z2Z2-K Solar DC Cable EN 50618

Conductor: Tinnd Copper
Insulation: XLPO
Insulation Color: Red
Temperature Range: -20°C to +90°C
Nominal Voltage: 0.6/1KV

Test Voltage: 3.5 KV
Standard: TUV

Inquiry Now

red,black 4mm2,6mm2,10mm2, 1500VDC H1Z2Z2-K Solar DC Cable EN 50618


Application:

For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter

Standard:

Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618



Product features:

Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance

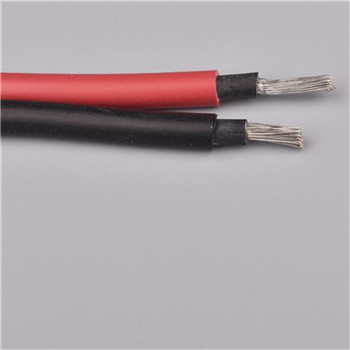

Cable Construction:

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.

Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.

Core Identification : Red, black or natural

Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.

Cable Colour : Black or Red,Blue



Benefits:

1.Reduction of flame propagation and of toxic combustion gases in the event of fire

2.Robust against mechanical impacts

3.For outdoor applications

4.Service Life: Expected life span ≥25 years



red,black 4mm2,6mm2,10mm2, 1500VDC H1Z2Z2-K Solar DC Cable EN 50618

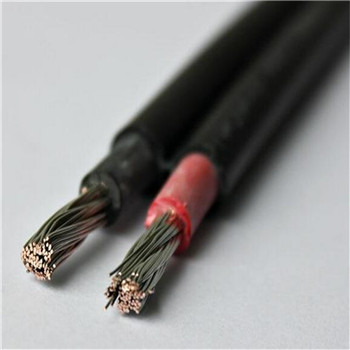

Twin Core  Solar cable

Cable Type

Nominal  area

Core construction

Conductor Dia

Outer Dia

Max. Conductor Resis(20ºC)

Rated voltage

Rated current

(mm2)

Strand/Dia  (mm)

mm

mm

Ω/Km

 AC/DC(V)

(A)

2x1.5mm2

1.5

30X0.25

1.6

5.80*9.30

13.9

1000/1800

20

2x2.5mm2

2.5

48X0.25

2

6.20*9.90

8.06

1000/1800

30

2x4.0mm2

4

56X0.30

2.6

6.90*11.30

4.97

1000/1800

50
